A well-planned bathroom starts behind the wall. Concealed Cistern and Frames create the hidden structure that supports your WC, stores the flushing tank out of sight, and delivers a clean, uncluttered finish. Instead of seeing pipework and a bulky cistern, you see a refined wall surface and a precisely aligned flush plate. This approach is widely used across modern homes, apartments, and light commercial projects in the UK.

When you choose VitrA Concealed Cistern and Frames, you invest in a system engineered for long-term reliability. The steel frame anchors securely to the floor and wall, the concealed toilet cistern sits protected within the structure, and servicing remains accessible through the flush plate opening. You gain valuable floor space, easier cleaning around the pan, and a quieter flush thanks to insulation within the wall cavity.

Concealed Cistern And Frames For Modern Bathrooms

If you are planning a bathroom renovation UK project, you have likely considered the difference between a traditional exposed cistern and an in wall cistern and frame system. The distinction is simple yet significant. An exposed cistern is visible and mounted directly to the pan or wall. A built in toilet cistern UK system hides the tank within a stud wall, furniture unit, or pre-wall frame, leaving only the flush plate on display. Choosing a high-quality concealed cistern ensures reliable performance and a streamlined finish.

This hidden installation transforms how your bathroom feels and functions:

• Space-saving layout – By moving the tank into the wall cavity, you reduce visual bulk. In smaller cloakrooms or en-suites, this creates a more open layout and improves circulation space.
• Easier floor cleaning – When paired with a wall hung WC, the toilet frame system lifts the pan off the floor. You can mop underneath without awkward edges.
• Reduced flush noise – Boxing in the dual flush concealed cistern helps absorb sound, which is useful in family homes or flats.
• Streamlined appearance – Clean wall lines and a slim toilet flush plate replace large ceramic cisterns.

In UK installations, Concealed Cistern and Frames are typically used in three ways. First, within a solid wall using a pre-wall frame fixed to masonry. Second, inside a timber or metal stud wall. Third, as part of a purpose-built duct or furniture housing for back to wall WCs. Your installer selects the correct fixing method based on structure, available depth, and pan type.

VitrA Concealed Cistern and Frames are WRAS compliant and designed for water efficiency. Many systems offer 6/3 litre dual flush concealed cistern performance, helping you manage household water use without compromising flush power. Each concealed toilet cistern is pressure-tested and manufactured under ISO 9001 quality standards, giving you added reassurance.

From domestic bathrooms to light commercial settings such as offices or hospitality projects, these systems support consistent daily use. The internal components are built for durability, and VitrA maintains long-term spare part availability to support future servicing.

Types Of Concealed Cistern And Frames

Not all Concealed Cistern and Frames are the same. The correct choice depends on whether you are installing a wall hung or back to wall WC, how much cavity depth you have, and how the toilet will be supported.

In the UK market, the two main configurations are:

• Wall hung toilet frame systems – A load-bearing steel wall hung toilet frame fixed to the floor and wall. It supports the WC pan directly and carries user weight through the frame.
• Back to wall toilet frame systems – Designed to sit within furniture units or stud boxing. The pan rests on the floor, while the concealed cistern for back to wall toilet is hidden behind.

Most VitrA Concealed Cistern and Frames use robust steel construction with anti-corrosion coating. Frames are often tested up to around 400kg when installed according to manufacturer guidance. This load rating ensures the wall hung toilet frame remains stable under daily use.

Height adjustability is another important feature. A height adjustable toilet frame UK installers rely on allows the pan height to be set before tiling. Adjustable legs, usually with several centimetres of tolerance, make it easier to achieve a comfortable finished seat height. Slim depth concealed cistern models are also available for tighter spaces where cavity depth is limited.

It is essential to match the concealed cistern for wall hung toilet or back to wall WC with a compatible flush plate range. VitrA engineers its systems to work together, reducing installation complications and ensuring reliable flushing performance.

Wall Hung Toilet Frame Systems

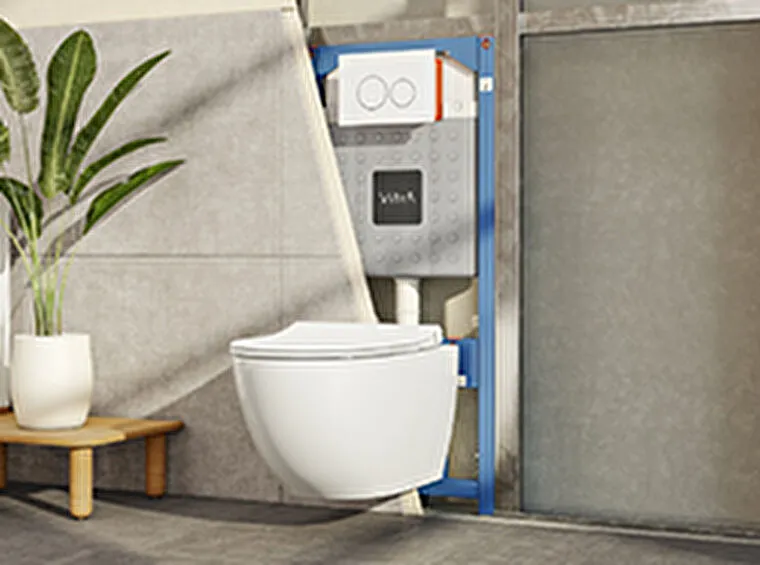

A floating toilet creates a strong architectural statement. The wall hung toilet frame carries the full load of the WC, transferring weight to the floor and wall anchors. Once tiled, you see only the pan and flush plate, while the in wall toilet frame system remains hidden.

During installation, the frame is positioned and fixed using heavy-duty bolts. Installers adjust the legs to achieve the desired finished height, commonly around 400mm from floor to pan rim, depending on user preference. Before tiling, they secure the concealed toilet cistern and connect water supply and waste pipes. After tiling, the pan mounts onto threaded rods extending from the frame.

Key technical points include:

• Load-bearing capacity up to 400kg – Tested steel structure provides confidence for family use.
• Service access via flush plate – The flush plate removes easily, allowing maintenance of valves and fill mechanisms.
• Acoustic insulation pads – Reduce vibration between pan and wall, improving comfort.
• Suitable for contemporary layouts – Ideal for smaller bathrooms and minimalist schemes.

Concealed Cistern and Frames for wall hung WC installations allow full floor access beneath the pan. This detail makes cleaning simpler and supports hygienic environments in busy households. VitrA Concealed Cistern and Frames in this category are engineered for consistent alignment, helping installers achieve a precise finish.

Back To Wall Toilet With Concealed Cistern

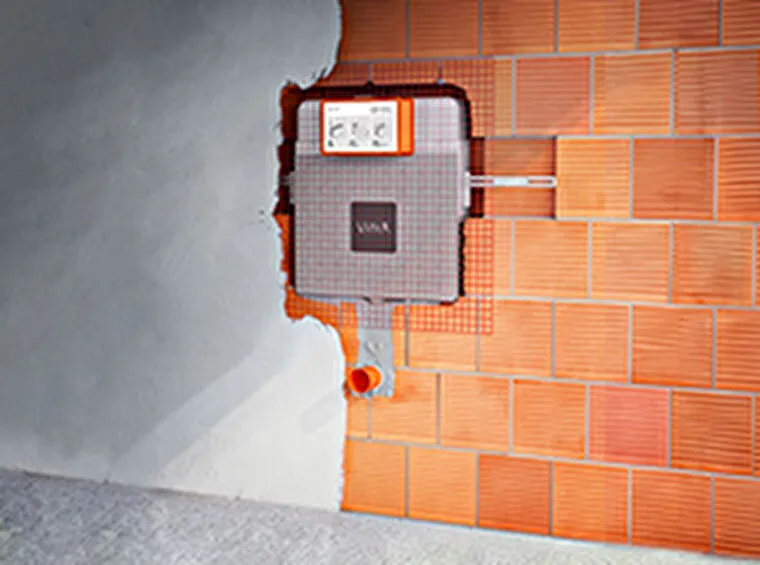

If you prefer a pan that rests on the floor, a back to wall toilet with concealed cistern offers a practical solution. In this configuration, the concealed cistern for back to wall toilet sits inside a furniture unit or stud wall, while the pan connects directly to the soil pipe at floor level.

This compact toilet frame system is popular in UK homes where a full floating installation is not required. Low height concealed cistern UK models can fit under windows or sloped ceilings, making them suitable for loft conversions or attic bathrooms.

Important considerations include correct pipe positioning and ensuring adequate access through the flush plate opening. Many homeowners worry about future servicing. In reality, modern Concealed Cistern and Frames are designed so key internal components can be removed from the front without dismantling tiles.

You can expect:

• Low height options – Ideal for installations beneath windows or in restricted spaces.
• Furniture unit compatibility – Frames integrate neatly within WC cabinets in finishes such as white gloss or wood-effect laminates.
• Front access maintenance – Flush plate removal provides entry to valves and mechanisms.

VitrA Concealed Cistern and Frames for back to wall WC installations combine solid internal engineering with straightforward maintenance access, which is essential for long-term peace of mind.

Flush Plates And Compatibility

The only visible part of your Concealed Cistern and Frames system is the flush plate. This small detail has a strong impact on the final look of your bathroom. It must also be fully compatible with the selected concealed toilet cistern. You can explore a wide range of options, including mechanical and pneumatic designs, within the flush plate collection.

Flush plates are available in various finishes and operating styles:

• Mechanical flush plate – Direct push-button mechanism, known for durability and simple installation.
• Pneumatic systems – Use air pressure to activate the flush, allowing more flexible positioning.
• Dual flush plate chrome – A popular UK choice, typically offering 6/3 litre options for water saving.
• Matt black or brushed tones – Suitable for modern interiors with darker brassware.

A modern toilet push button plate is removable, allowing servicing access to the in wall cistern and frame. This design ensures that maintenance does not require tile removal. When planning your bathroom renovation UK project, always confirm compatibility between the flush plate frames and the concealed cistern model.

VitrA offers flush plates specifically designed to work with its Concealed Cistern and Frames range. This alignment reduces the risk of misfitting parts and ensures smooth operation over time. The tactile feel of the buttons, the precision of movement, and the flush response all contribute to daily user satisfaction.

Installation Requirements And Technical Considerations

Before selecting your frame system, it is important to consider structural support, waste pipe alignment, and compatibility with your chosen toilets. Proper installation ensures that Concealed Cistern and Frames perform reliably for years to come.

Water efficiency is a key concern in modern homes. A dual flush concealed cistern typically provides a full flush of 6 litres and a reduced flush of 3 litres. This simple choice supports responsible water use without compromising hygiene.

Within VitrA Concealed Cistern and Frames, the flushing valves are engineered for consistent flow and reliable resealing. WRAS approval confirms compliance with UK water regulations. Over time, this efficiency can reduce household water consumption, especially in busy family settings.

The built in toilet cistern UK market increasingly favours dual flush functionality. By choosing a system with proven performance and accessible spare parts, you protect your investment for the long term.

When selecting Concealed Cistern and Frames, you rarely see the engineering once the wall is closed. That makes build quality even more important. VitrA Concealed Cistern and Frames use steel frames with anti-corrosion coatings designed to withstand humid bathroom environments.

Each concealed toilet cistern is pressure-tested before leaving the factory. Internal components are selected for durability, and spare parts remain available for extended periods. This approach supports maintenance years after installation.

Reliability depends on three factors: correct specification, professional installation, and quality components. By choosing a coordinated toilet frame system and flush plate from the same manufacturer, you reduce compatibility issues. Installers appreciate systems that are clearly documented and straightforward to adjust on site.

If you are planning a renovation or specifying a new build project, exploring the VitrA Concealed Cistern and Frames collection allows you to compare frame types, depth options, and compatible flush plates in one place. Reviewing technical drawings and matching the correct system to your chosen WC ensures a smoother installation and dependable long-term performance. You can browse the full range and detailed specifications directly at VitrA to make a confident, informed decision.

Frequently Asked Questions About Concealed Cistern And Frames

How deep does a concealed toilet cistern need to be in a UK bathroom?

Most in-wall systems require a cavity depth of around 120–200mm depending on the model. Slim versions suit tighter spaces, while standard frames need enough room for the tank and pipework. Your installer also allows for plasterboard and tile thickness. Always check the technical drawing before building the stud wall.

Are concealed cisterns reliable compared to traditional exposed cisterns?

Yes, when installed correctly they are very reliable. The tank and valves are pressure-tested and designed for long-term use. Access for maintenance is through the flush plate, so key components can be serviced without removing tiles. Choosing a quality frame with long-term spare parts availability is key.

Can I fit a concealed cistern in a solid brick wall?

It is possible, but installers usually build a false wall or use a pre-wall frame fixed to the masonry rather than cutting deeply into brickwork. A metal frame system protects the structure and provides proper support for the WC pan.

What is the weight limit for a wall hung toilet frame?

Most quality frames are tested to support loads up to around 400kg when installed according to instructions. The strength comes from the steel frame fixed to the floor and wall, not the plasterboard. Correct installation is essential to achieve the stated load capacity.
